DPF Button Switch - DPF2K

LIN-DPF2K00-010006

$73.70 AUD

$73.70 AUD

Tax included. Shipping calculated at checkout.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

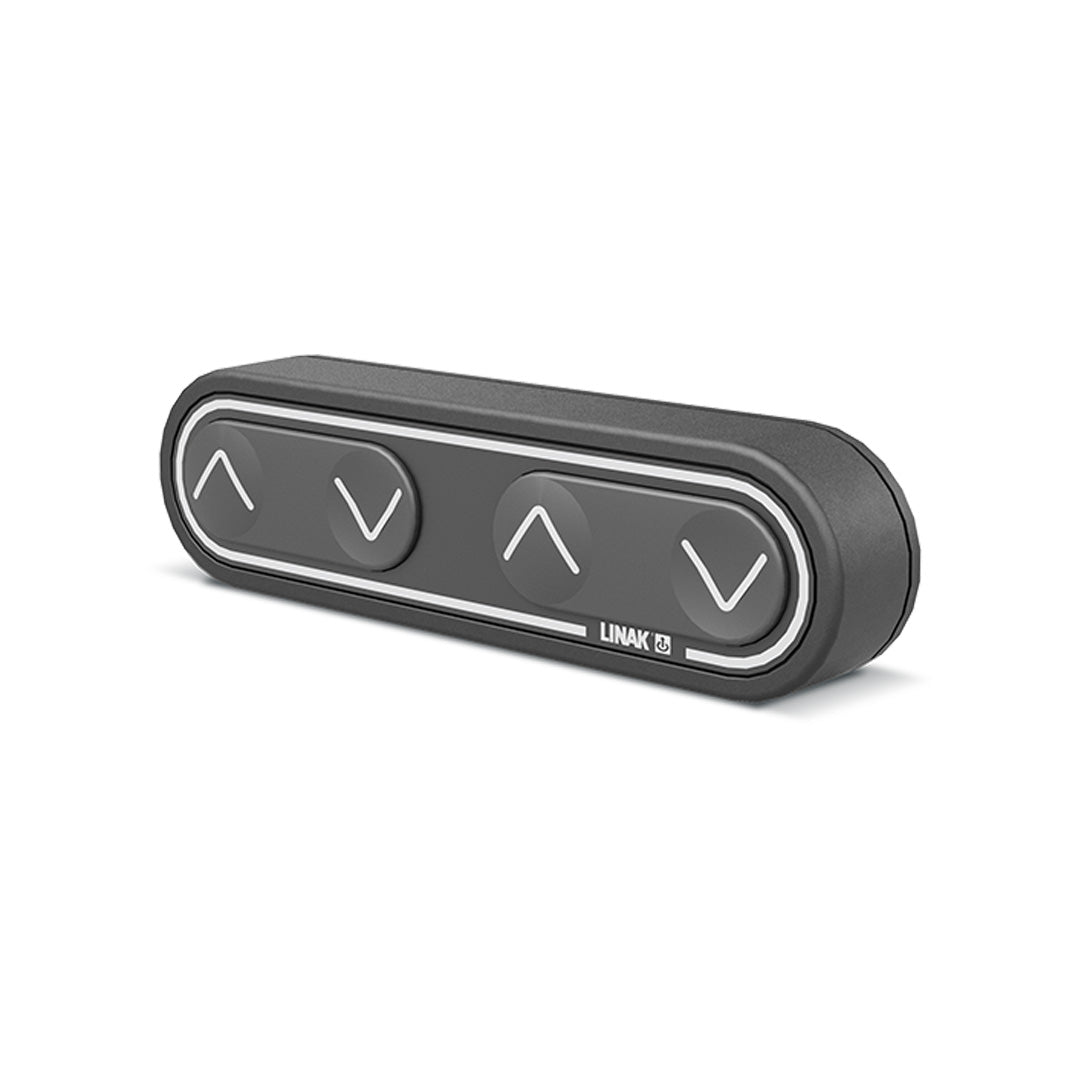

LINAK® DPF2K – Up/Down Button Switch with 2 Memory References

Control Function

This switch provides two control references: up and down and another for tilting forward or backward.

Compatible with all DESKLINE® control boxes
Available in black with standard 1700 mm (+/-70mm) straight cable with modular jack
90° or 45° mounting bracket can be purchased separately

Specification

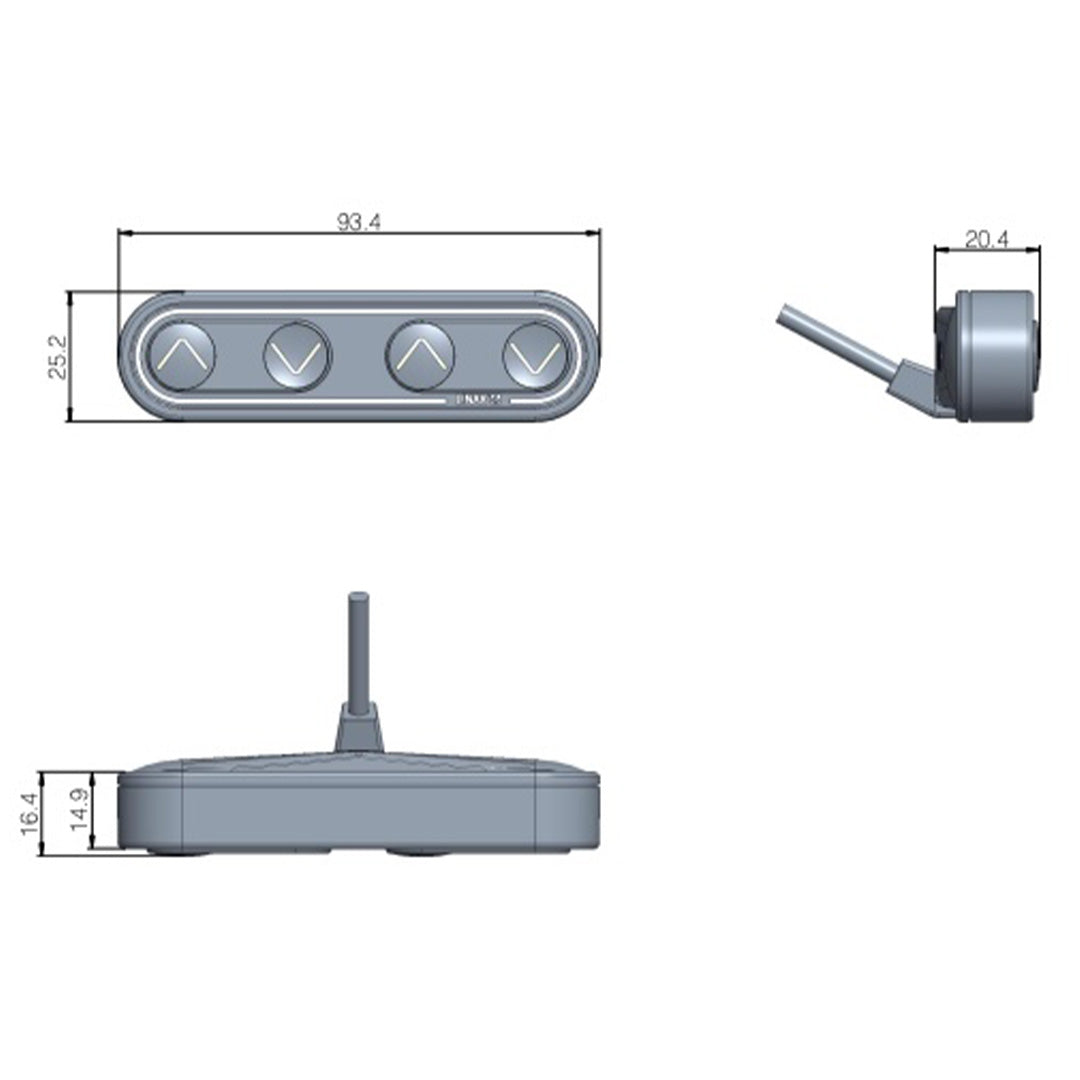

Size	L: 93.3 H: 25.2 W: 20.4 mm
Colour	Black (RAL 9005)
Cable	1700 mm black straight
Mounting options	45° or 90° brackets are optional
Indoor use only	dry environments
Operating temperature	10 to 40 °C
Relative humidity	20–80% (non-condensing)
Max altitude	2000 m
Certified to	EN 60335-1 and UL 962

Applications

Office desks
Workstations
TV lifts
Monitor stands
Mobile carts

Compatibility

Compatible with DESKLINE® control boxes

Datasheet Download DPF Button Switches

Datasheet Download DPF with Display Button Switches

DPF Button Switch - DPF2K

$73.70 AUD

LINAK® DPF Series – Compact, Up/Down and Memory Desk Panel Controls

Wired button switch control units for electric desks with up/down or memory functions. Compatible with DESKLINE® and DL IC systems.
