LINAK®

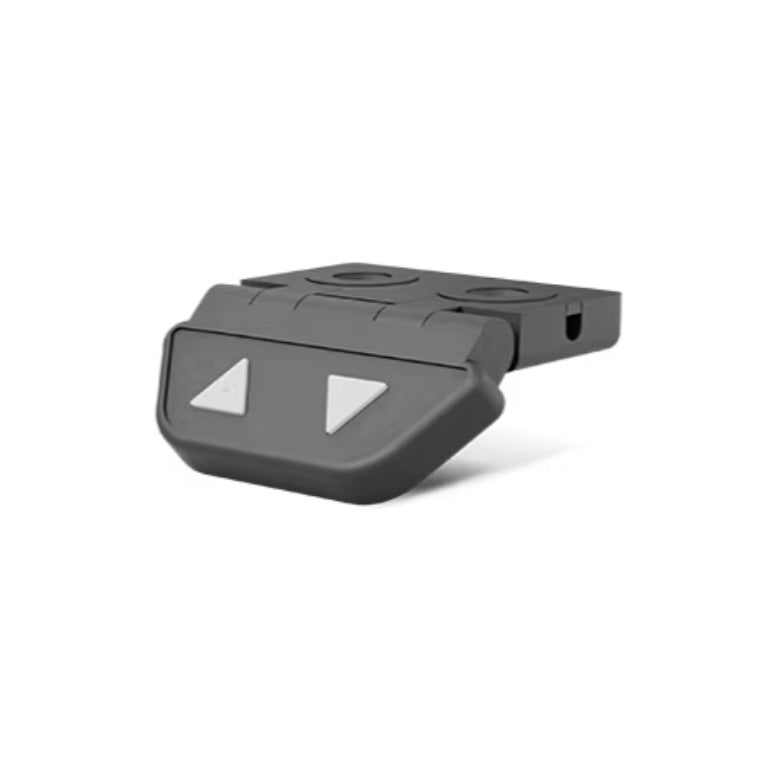

DPA Button Switch - DPAK06

LIN-DPAK06

$41.80 AUD
$41.80 AUD
Tax included. Shipping calculated at checkout.

Specification

Control capacity

Ergonomic panel for up to 4 actuators in parallel

Button design

Raised up/down arrowhead buttons for intuitive operation

Mounting flexibility

Adjustable front panel allows versatile installation

Housing colour

Dark grey (RAL 7016) with light grey buttons (RAL 7038)

Cable specification

1580 mm black cable, straight, with RJ45 plug

Construction

Durable plastic housing with integrated mounting holes (screws not included)

Environment

Suitable for indoor use in dry conditions

Compliance

Approved according to EN 60335-1 and UL962

Applications

  • Industrial workstations requiring robust, user-friendly control
  • Technical desks and operator consoles
  • Office desks with electric height adjustment
  • Laboratory and healthcare furniture requiring compact integration

Compatibility

  • Fully compatible with DESKLINE® control boxes
  • Supports DL IC (Integrated Controller) actuator systems
Datasheet Download - DPA
DPA Button Switch - DPAK06

$41.80 AUD

  • DPA Panel

    Commonly used in control rooms, operator stations, workbenches, and ergonomic workstation setups

  • Ideal for electric height adjustable desks in office, industrial, or technical environments

  • For indoor use in dry locations

  • simple, durable actuator

    Suitable for applications requiring simple, durable actuator control without complex interface systems
  • Panel type: Compact control panel with raised buttons
  • Housing material: Plastic PVC Free
  • Housing Colour: Dark grey (RAL 7016)
  • Buttons Colour: Light grey (RAL 7038)
  • Control capacity: Supports control of up to 4 actuators in parallel
  • Connector: RJ45
  • System interface: DESKLINE® control boxes and DL IC systems
  • Panel includes integrated mounting holes
  • Screws not supplied (user-supplied based on surface requirements)
  • Adjustable panel front allows horizontal or angled installation to suit various desk designs

Operation:

  • Temperature: 10 to 40 °C
  • Relative humidity: 20% to 80% (non-condensing)
  • Atmospheric pressure: 800 to 1060 hPa
  • Max. altitude: 2000 m

Storage and Transportation:

  • Temperature: -10 to +50 °C
  • Relative humidity: 20% to 80% (non-condensing)
  • Atmospheric pressure: 700 to 1060 hPa
