LINAK®

Battery LIN-BA001

LIN-BA001

$368.50 AUD
$368.50 AUD
Tax included. Shipping calculated at checkout.

Features

  • Battery Type: Lithium-ion (Li-ion)
  • Capacity: 2.15 Ah / 52 Wh
  • Nominal Voltage: 24 V DC
  • Maximum Discharge Current: 9A
  • Charging Voltage: Up to 40 V DC
  • Charging Current: 0.5 A
  • Weight: Approximately 600 g
  • Protection Features: Thermal switch and overcurrent protection

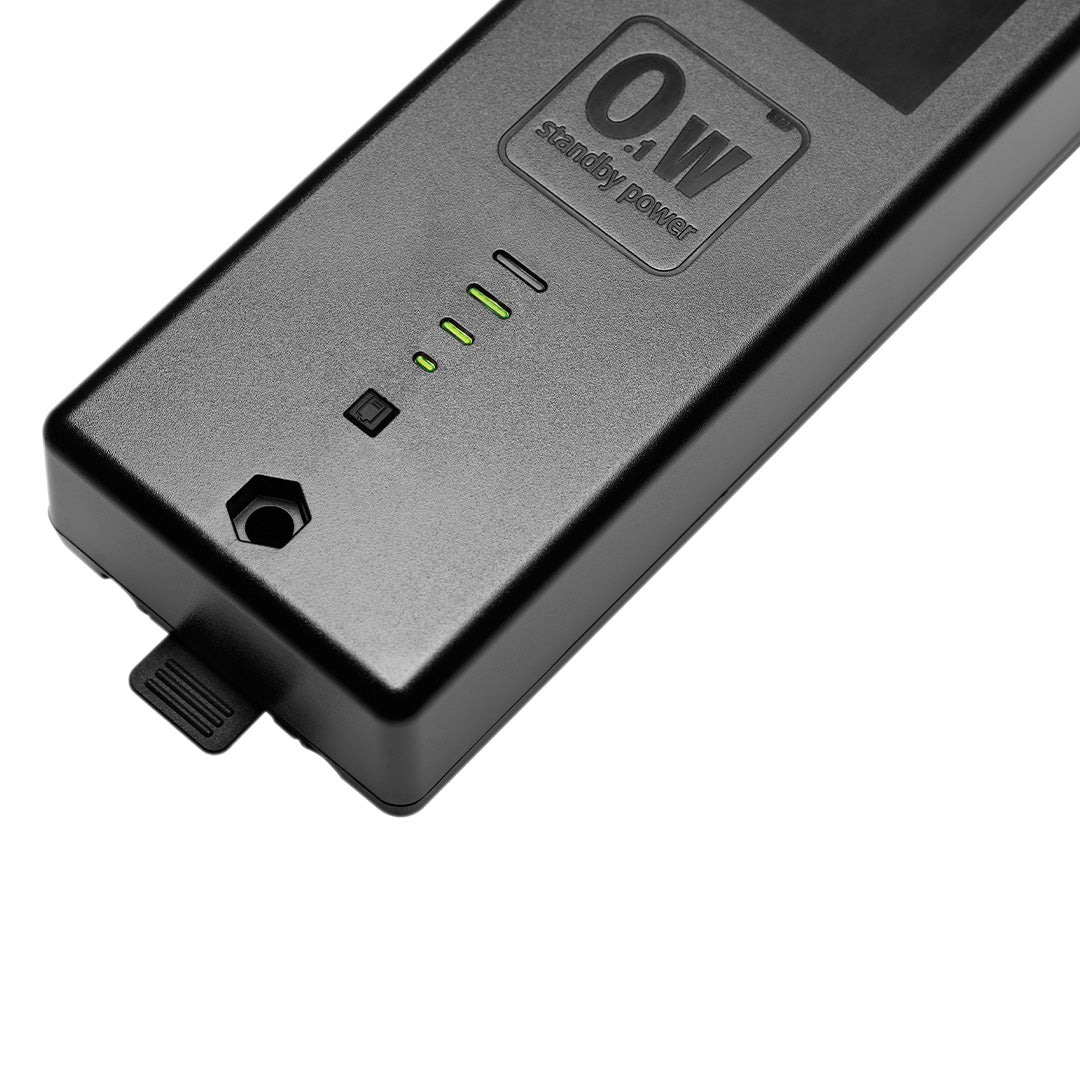

  • Indicators: LED light bars for battery capacity and an audio alarm for low charge
  • Mounting: Comes with a bracket for easy installation and removal

Compatibility and Applications

The BA001 is compatible with LINAK® DESKLINE® and HOMELINE® systems, including control boxes like the CBD6S (software version 1.37 or later) and CBH Advanced. It's ideal for:

  • Mobile height-adjustable desks
  • TV or monitor stands
  • Recliners and adjustable beds
  • Medical and industrial carts

Charging and Safety Considerations

Charging Options:
Only compatible with LINAK® CBD6S control box or SMPS006 power supply.

Safety Guidelines:

  • Avoid exposure to heat, fire, water, or direct sunlight.
  • Ensure proper ventilation during charging; do not cover the battery or charger.
  • Store on a non-flammable surface and keep away from children.
Datasheet Download - BA001
Battery LIN-BA001

$368.50 AUD

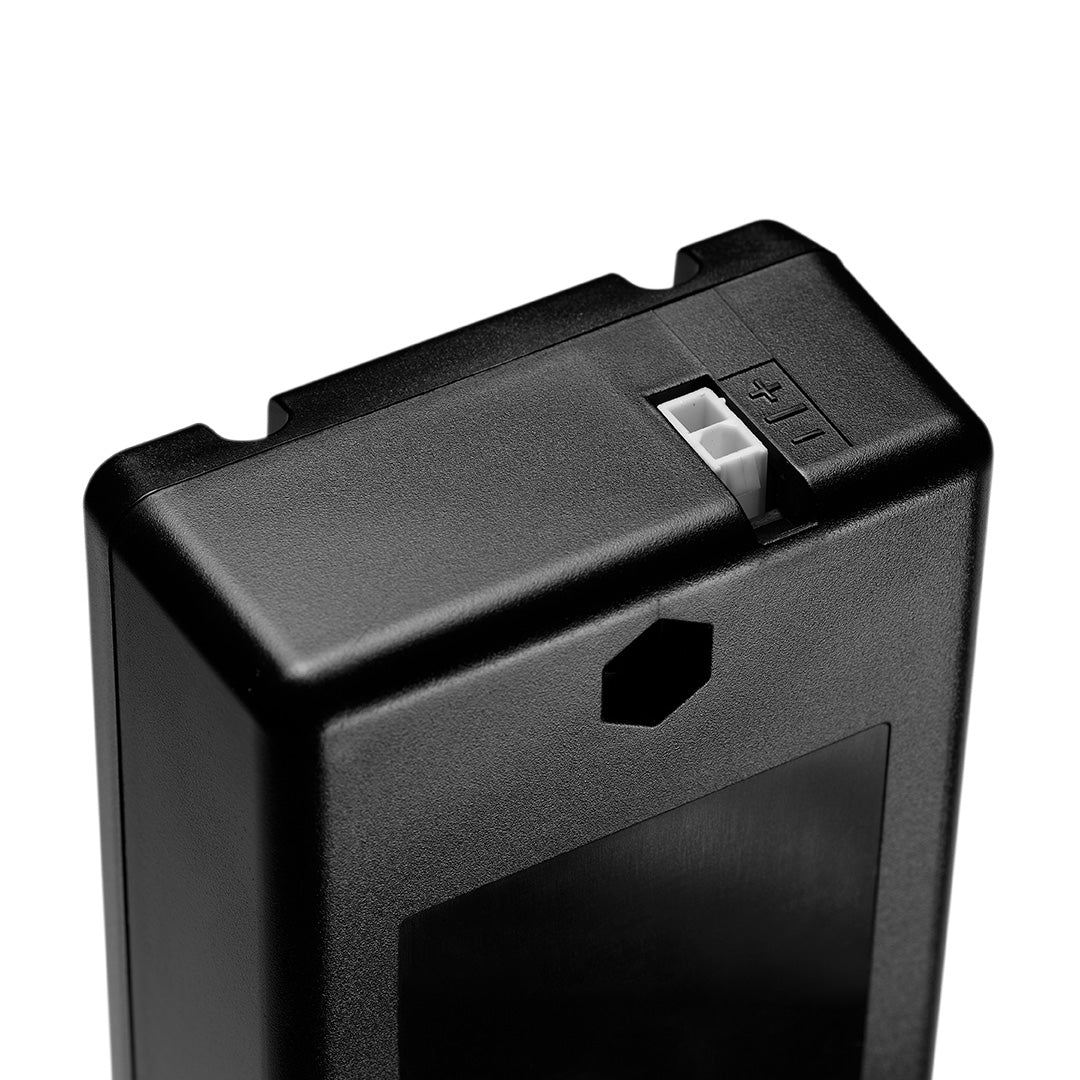

LINAK® BA001 Battery Box

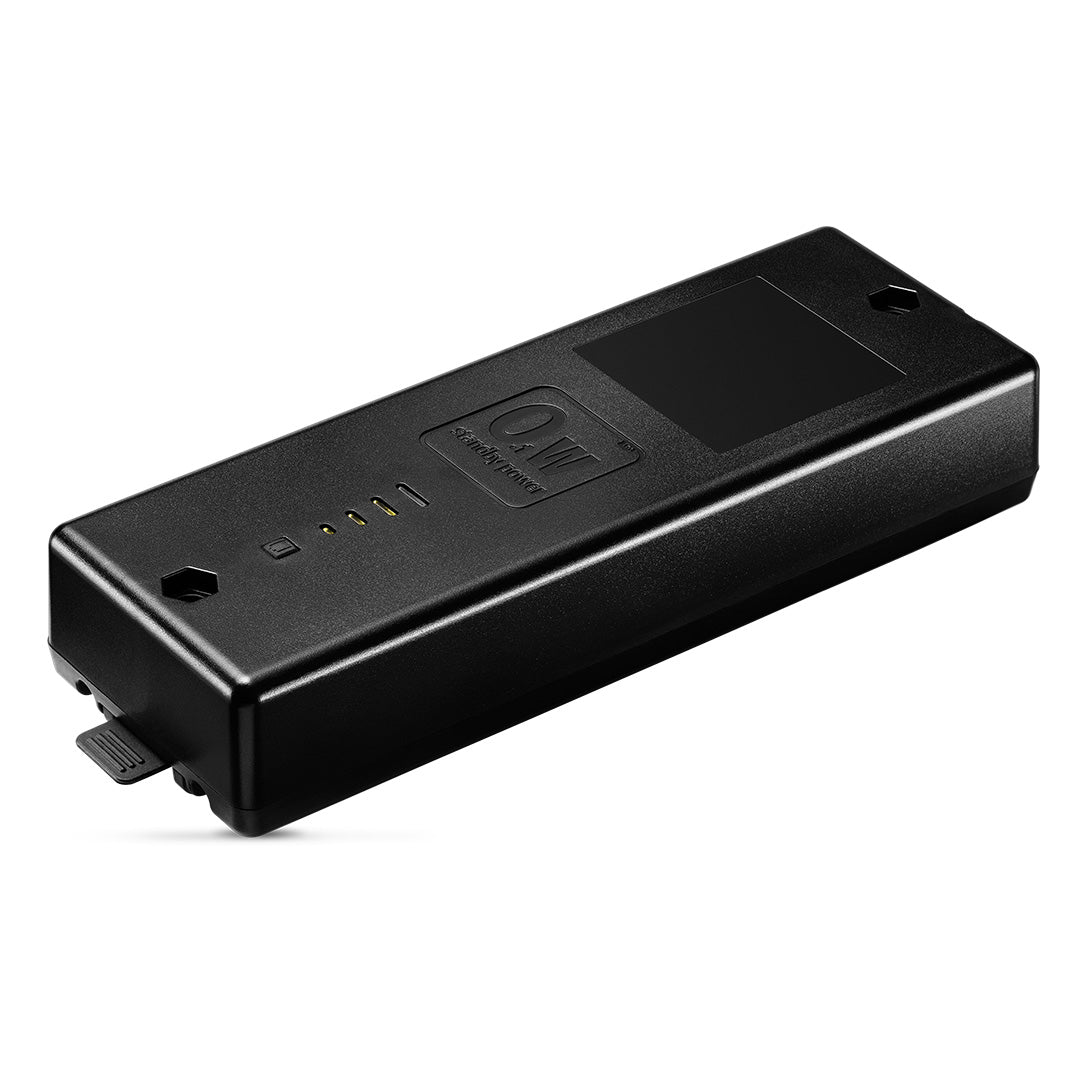

Compact, rechargeable lithium-ion power for mobile actuator systems. LED indicators show battery level, and an integrated audio alarm signals when charging is required.

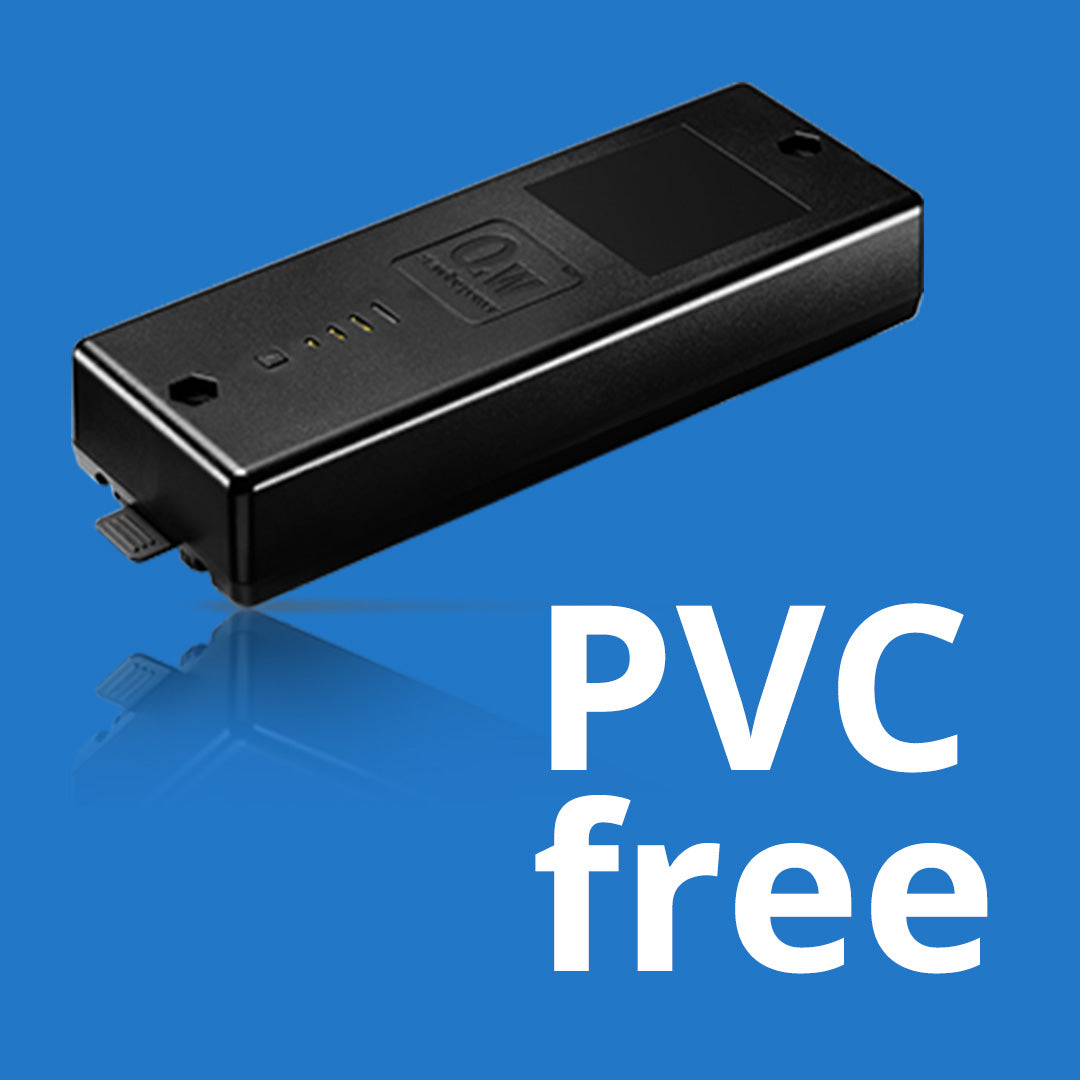

  • PVC-free

    The BA001 battery, like all standard LINAK® lifting columns, control boxes, and controls, is PVC-free—supporting safer, more sustainable actuator solutions for modern workspaces.

  • Ideal for mobile applications

    Ideal for mobile applications such as medical carts, trolleys, or recliners, it eliminates the need for permanent mains connection.

  • High-efficiency Battery

    A high-efficiency lithium-ion battery box designed for use with compatible DESKLINE® and HOMELINE® systems.

  • Audio charging alert

    Emits a beep—typically when it reaches around 25%—to signal it's time to recharge.

  • Capacity

    2.15 Ah

    Power Storage

  • under

    >0.1 W

    Standby consumption

  • Selling in

    24 V DC

    Nominal voltage

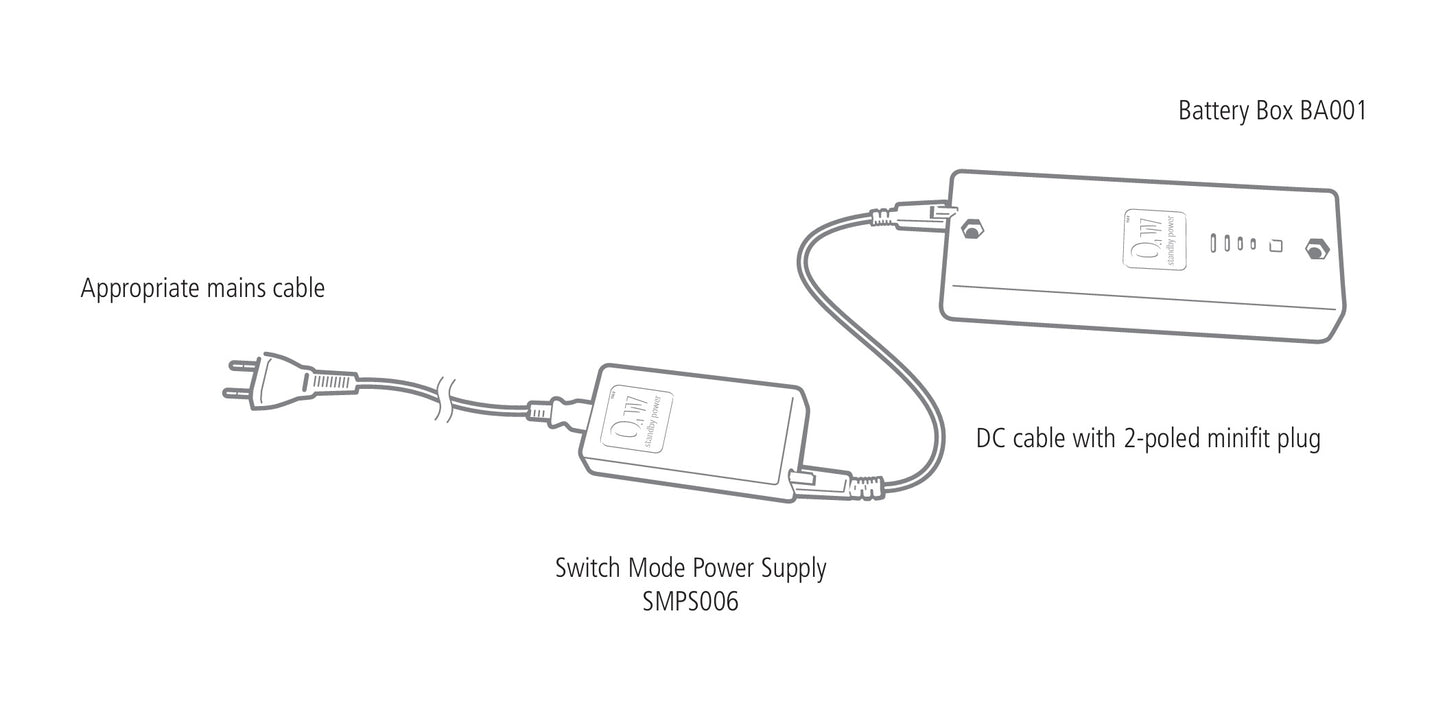

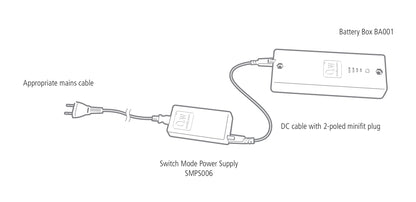

  • Can be charged either in situ via the CBD6S control box or externally using the SMPS006 power supply with an appropriate DC cable.

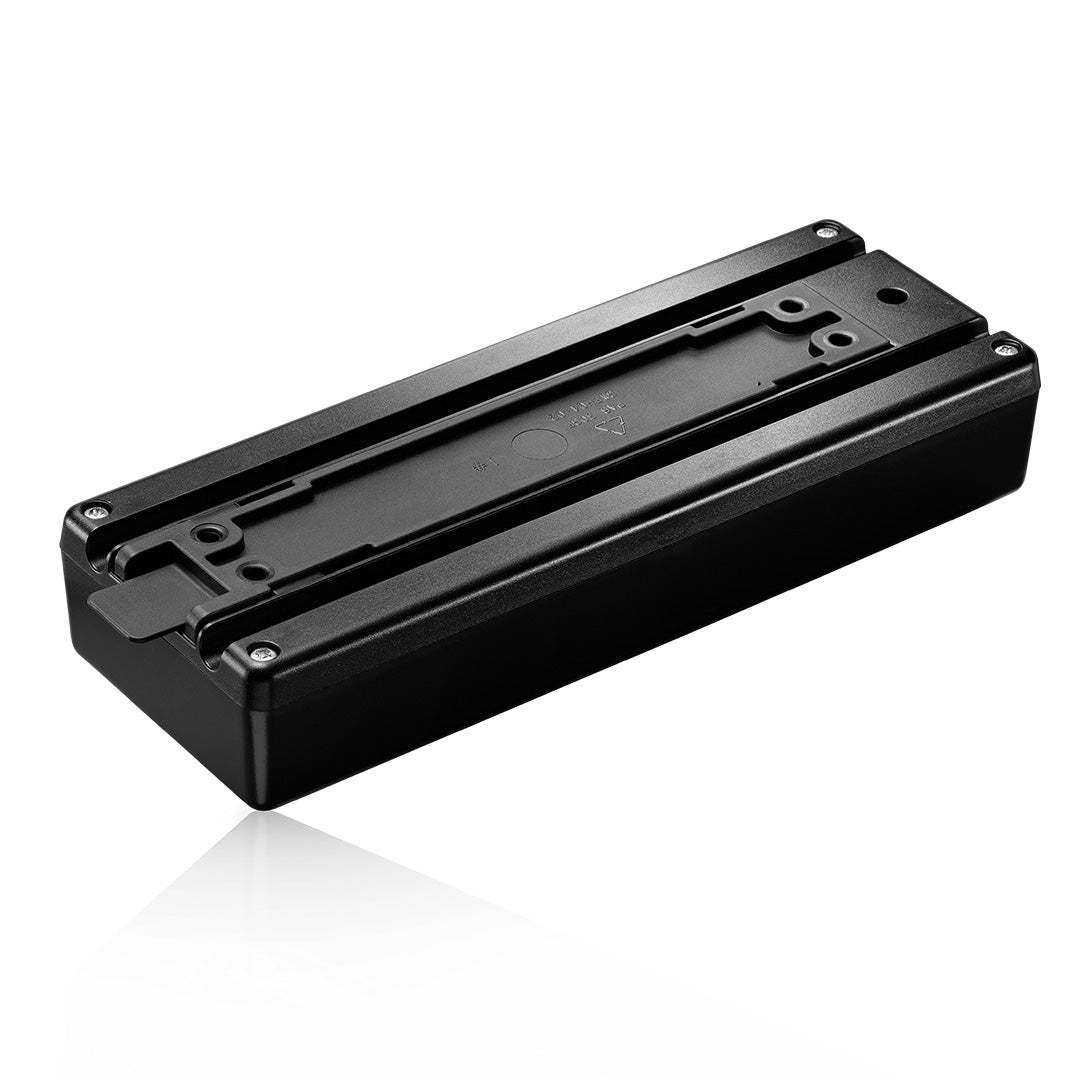

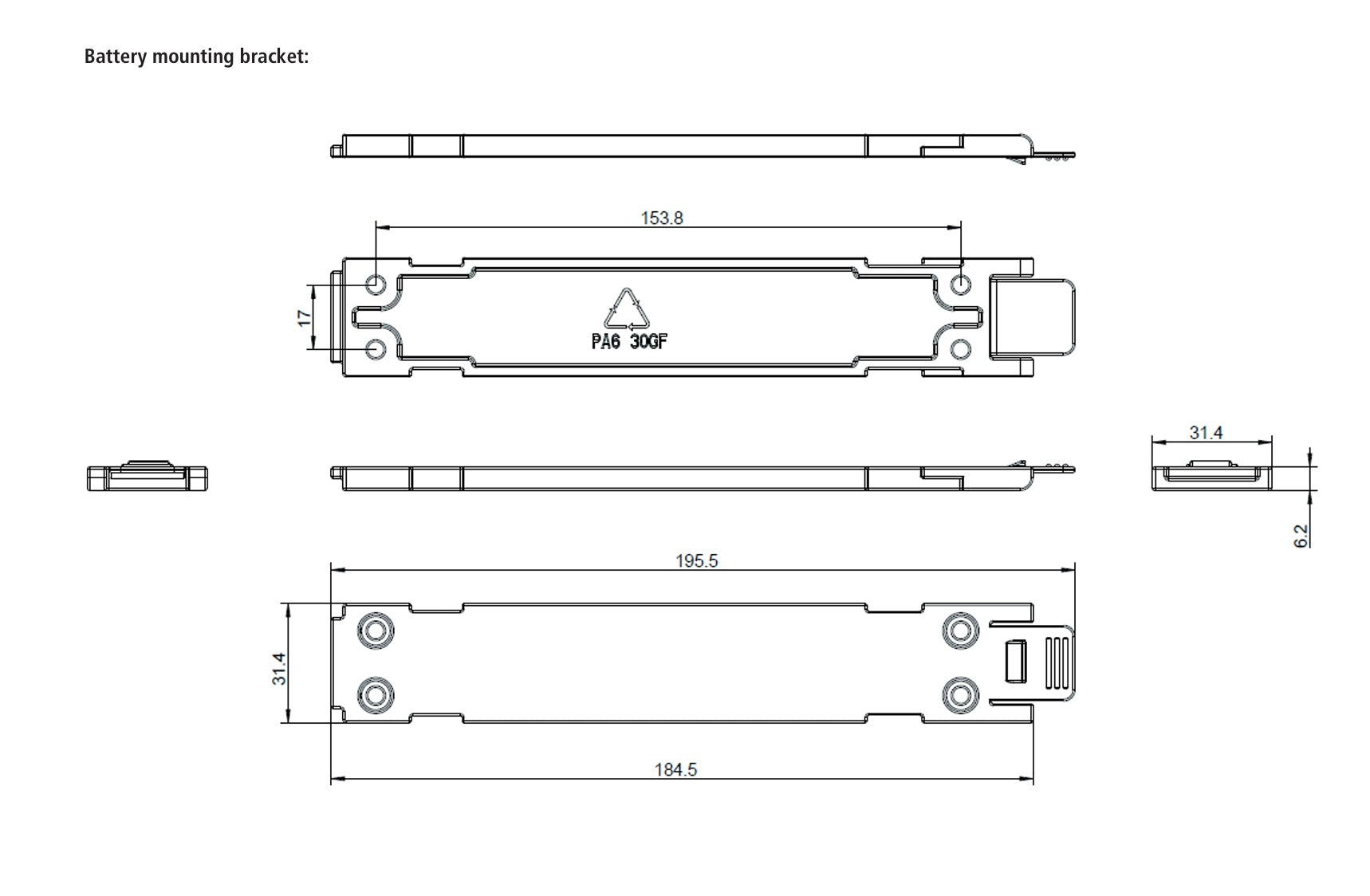

  • Mounting bracket allows easy removal when external charging is preferred.
  • Intended for indoor use only—not for harsh environments like industrial kitchens.
  • One-year warranty applies to manufacturing defects (from production date); proper use and maintenance must be observed.
  • If capacity drops below 25% (indicated by one LED), do not store—charge before storing.
  • The battery is expected to retain at least 70% of its capacity after ~500 cycles under ideal conditions.
  • Repairs or servicing should only be handled by authorized LINAK service centers to ensure safety and warranty validity.
Support Request
  • For height-adjustable desks (two-leg, average load): Approximately 40–50 full cycles (up/down) on a full charge.
  • For library carts under typical usage: Around 160 full cycles per charge.
  • Standby consumption is extremely low, under 0.1 W thanks to LINAK® "ZERO™ technology."
  • Includes practical wire management grooves on the back to help keep cables tidy when mounted.
