LINAK®

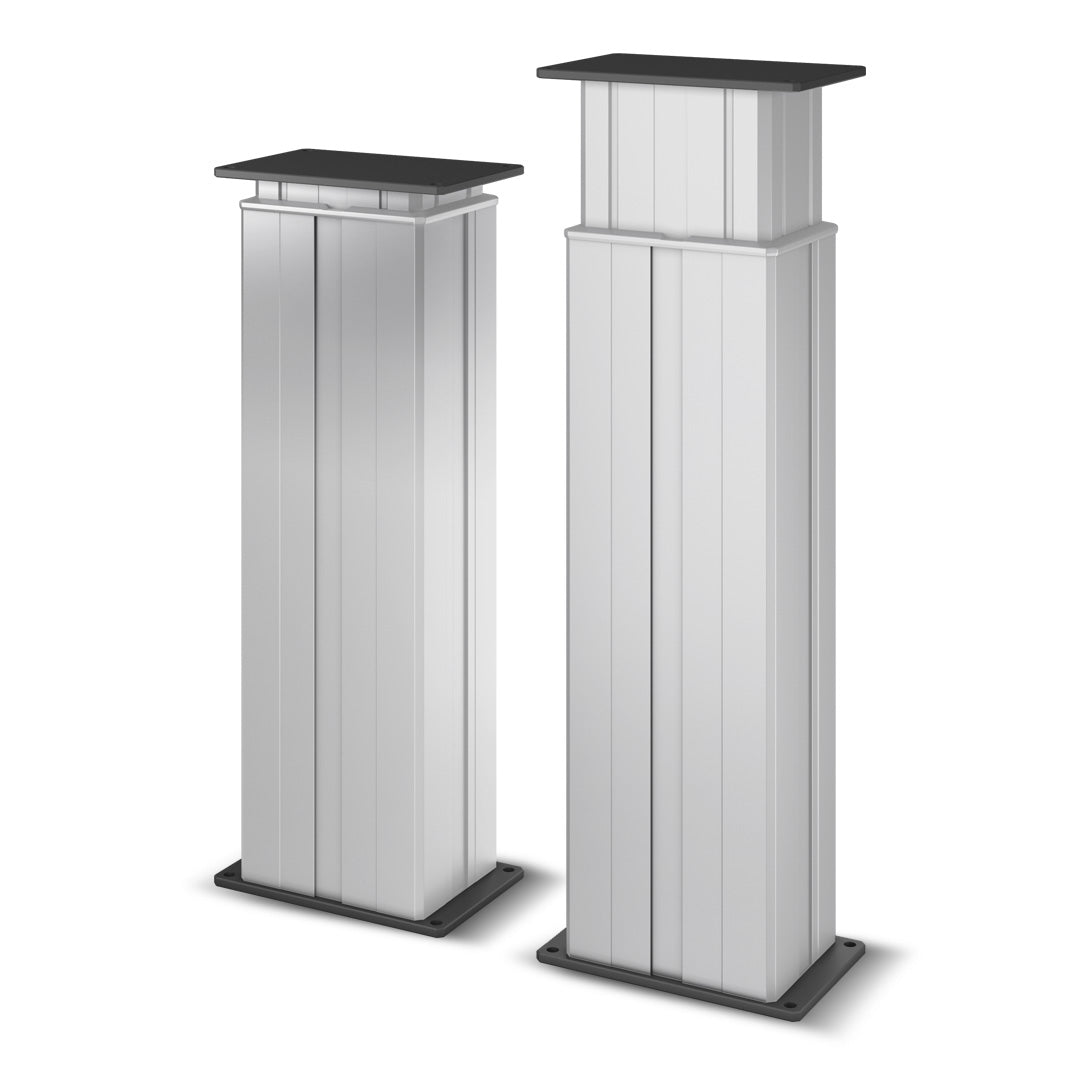

DL2 Electric Lifting Column

LIN-DL230CB00500655

$731.50 AUD
$731.50 AUD
Tax included. Shipping calculated at checkout.

Specifications

Max. thrust

2,500 N

Max. speed

20 mm/s

Stroke length

300–500 mm (typical variants)

Installation dimension

Stroke + 400 mm

Bending moment

up to 250 Nm

Duty cycle

10 % / 2 min on + 18 min off

Voltage

24 V DC (via control box)

Operating temperature

+5 °C to +40 °C

System Integration

  • Can operate as a parallel (2–4 columns), or multi-parallel (up to 16 columns) setups
  • Designed for stable, parallel drive in multi-column configurations

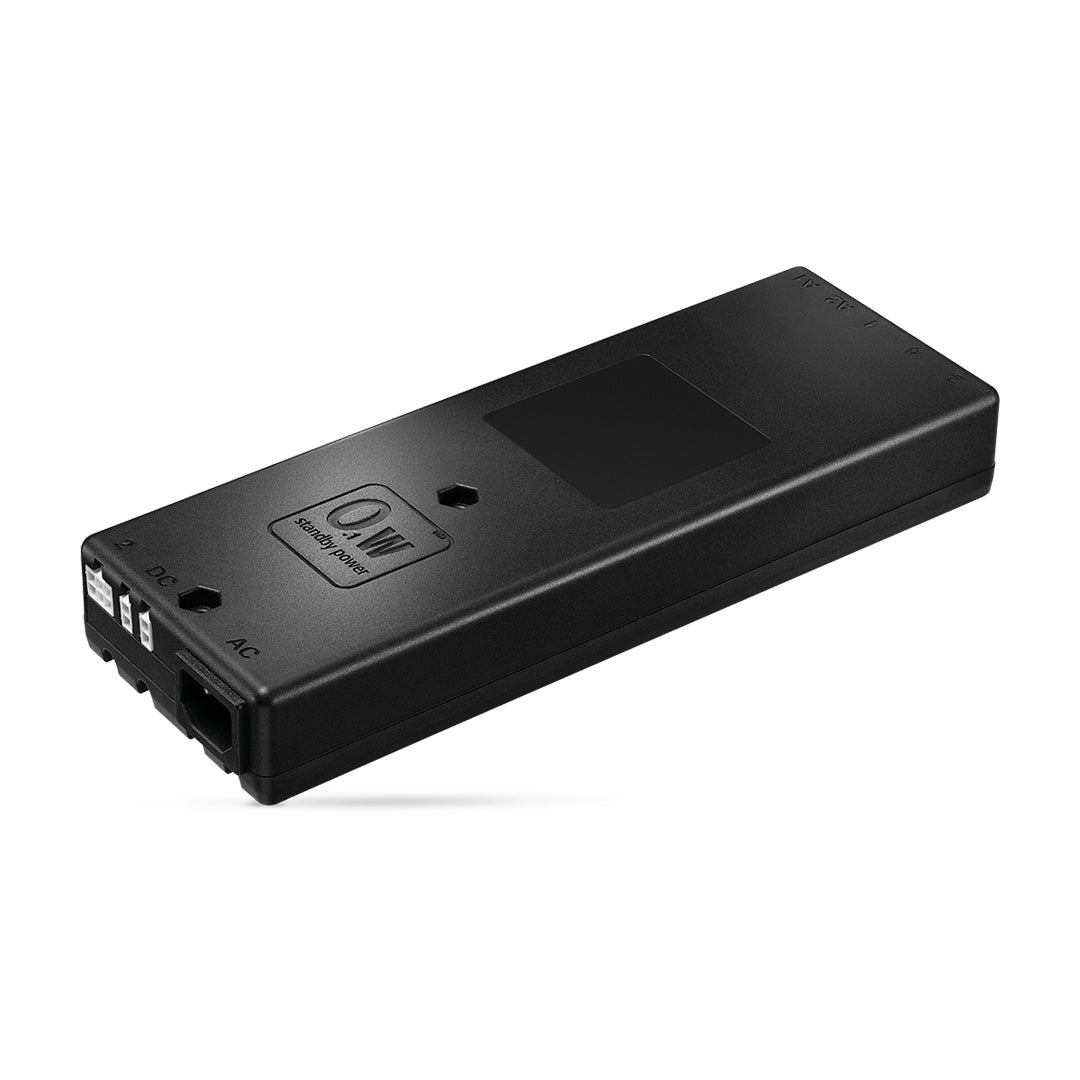

  • The DL2 integrates seamlessly with LINAK® DESKLINE® control boxes such as CBD6S and can operate in single
  • Its four-sided grooves simplify mounting within custom frames, while internal cable routing ensures a clean installation.
  • The column supports control panels and accessories across the LINAK® ecosystem for consistent motion and safety performance.

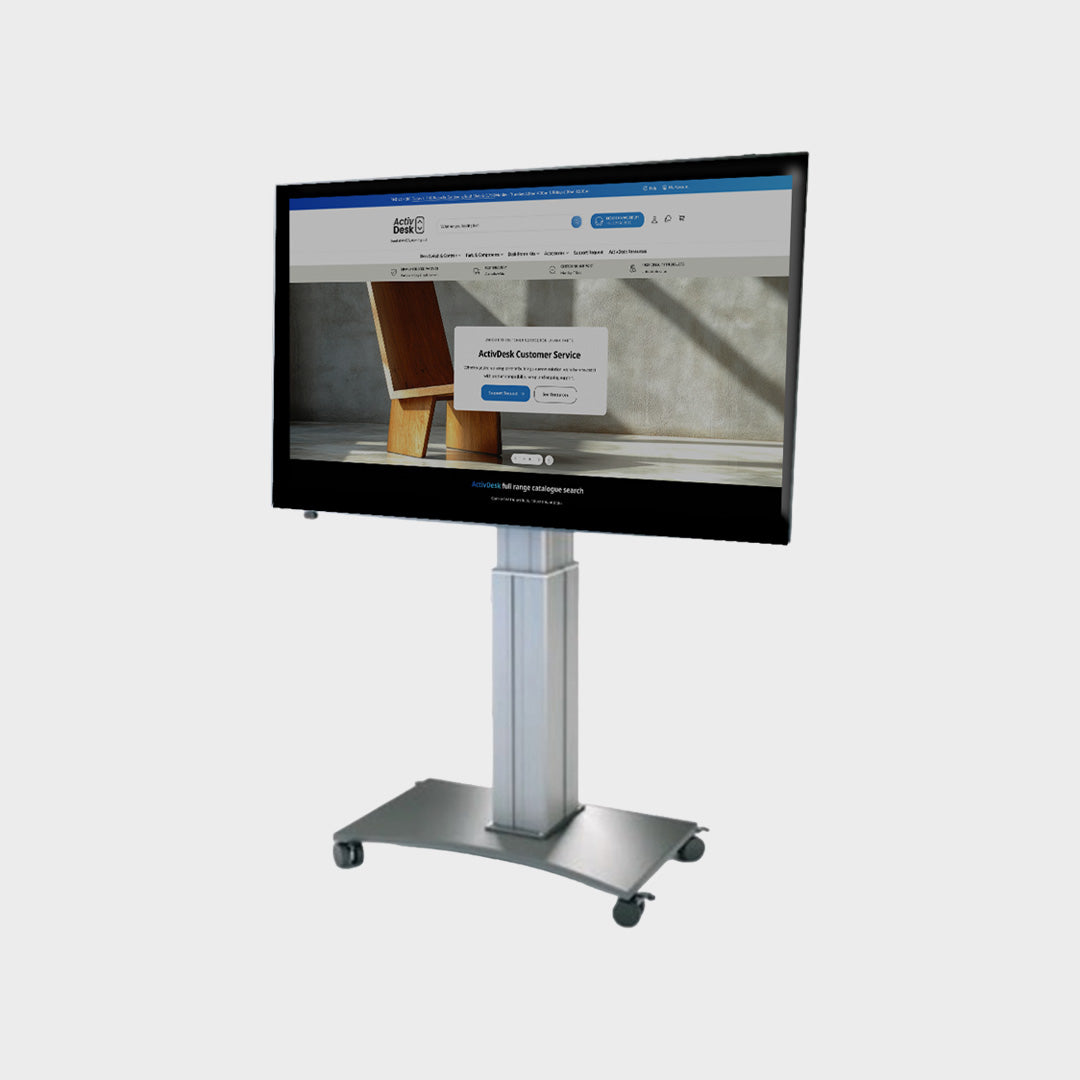

Applications

  • Control room consoles
  • Technical workstations
  • Assembly benches
  • Industrial work desks
  • Test benches and adjustable production equipment

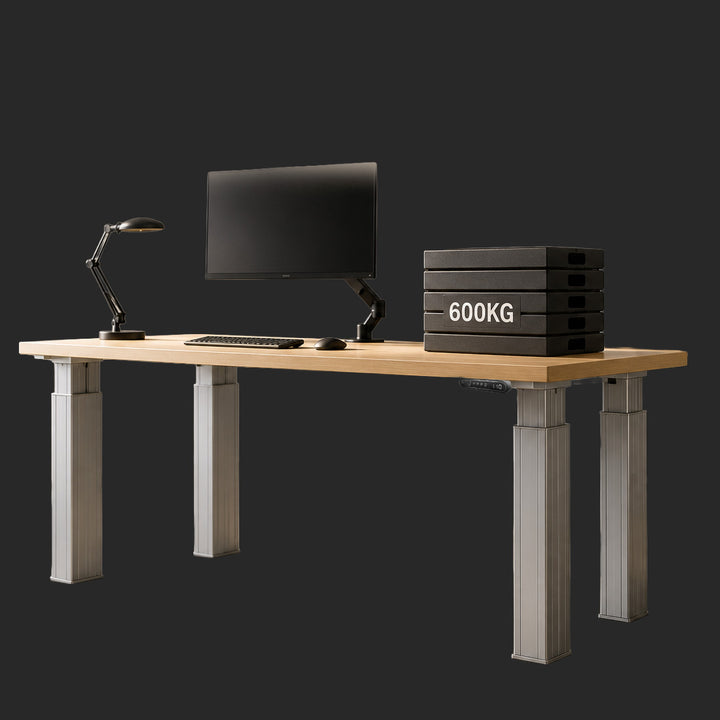

  • Multi-column heavy-load configurations
Datasheet Download - DL2
DL2 Electric Lifting Column

$731.50 AUD

  • Supports single or parallel drive configurations

  • Duty cycle

    Max. 5% (≈ 1 min continuous use, 19 min rest)

  • Indoor use only – dry environments

  • Load Capacity (Dynamic): 1500N
  • Load Capacity (Static): 2500N
  • Stroke Length: 500 mm
  • Installation Height: 655 mm
  • Column Type: 2-stage telescopic
  • Column Dimensions: 147 × 194 mm
  • End Plate Dimensions: 160 × 244 × 8 mm
  • Weight: Approx. 12.5 kg
  • Dynamic Bending Moment: My+/Mx+ = 250 Nm, My-/Mx- = 200 Nm
  • Built-in Limit Switches: Yes (non-adjustable)
  • Operating Voltage: 24V DC
  • Control Box Compatibility: LINAK CBD6S, DESKLINE® range
  • Max Speed (Unloaded): 20 mm/s
  • Power Cable Included: 100 mm mini-fit cable
  • Control Interfaces: Digital, OpenBus (if applicable)

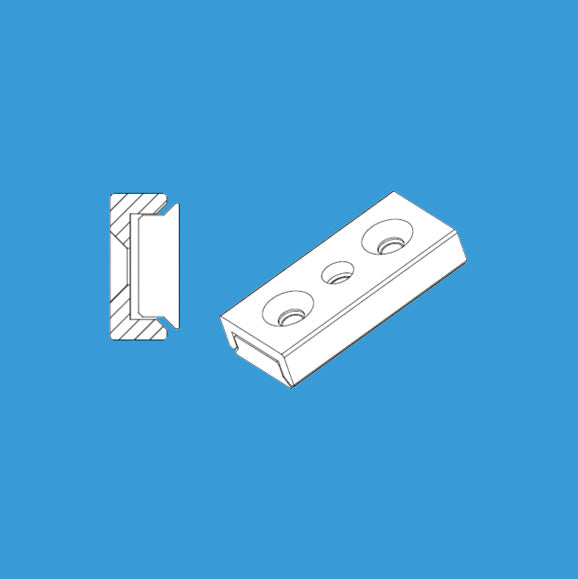

  • Mounting Grooves: 4-sided for flexible bracket positioning
  • System Configurations: Single, 2–4 column parallel, up to 16 multi-parallel
  • Cable Management: Optional accessories available
  • Operating Temperature Range: 0°C to +40°C
  • IP Rating: IP20
  • Life Cycle Expectancy: >10,000 full load cycles
  • Noise Level: Low noise operation

DL2 – Heavy-Duty Lifting Column

The DL2 delivers smooth, reliable adjustment with a 1500 N load capacity. Designed with 8 mm end plates for secure custom mounting, it’s ideal for industrial workstations, control rooms, and machinery integration. Compatible with CBD6S control boxes and standard LINAK® system components.

  • 1500 N load capacity
  • 8 mm end plates for mounting
  • Stable under frequent use
  • Industrial-grade reliability
