Vendor:LINAK®Mains Standard Power Cable 3000mm
Regular price $28.05 AUDSale price $28.05 AUD Regular priceUnit price per -
Vendor:LINAK®Mains Power Cable IC 3000mm
Regular price $26.62 AUDSale price $26.62 AUD Regular priceUnit price per -
Vendor:LINAK®LINAK® Link Data Cable
Regular price From $17.60 AUDSale price From $17.60 AUD Regular priceUnit price per -
Vendor:LINAK®Motor Extension Cable 2000mm
Regular price $31.35 AUDSale price $31.35 AUD Regular priceUnit price per -
Vendor:LINAK®Motor Cables
Regular price From $13.75 AUDSale price From $13.75 AUD Regular priceUnit price per -

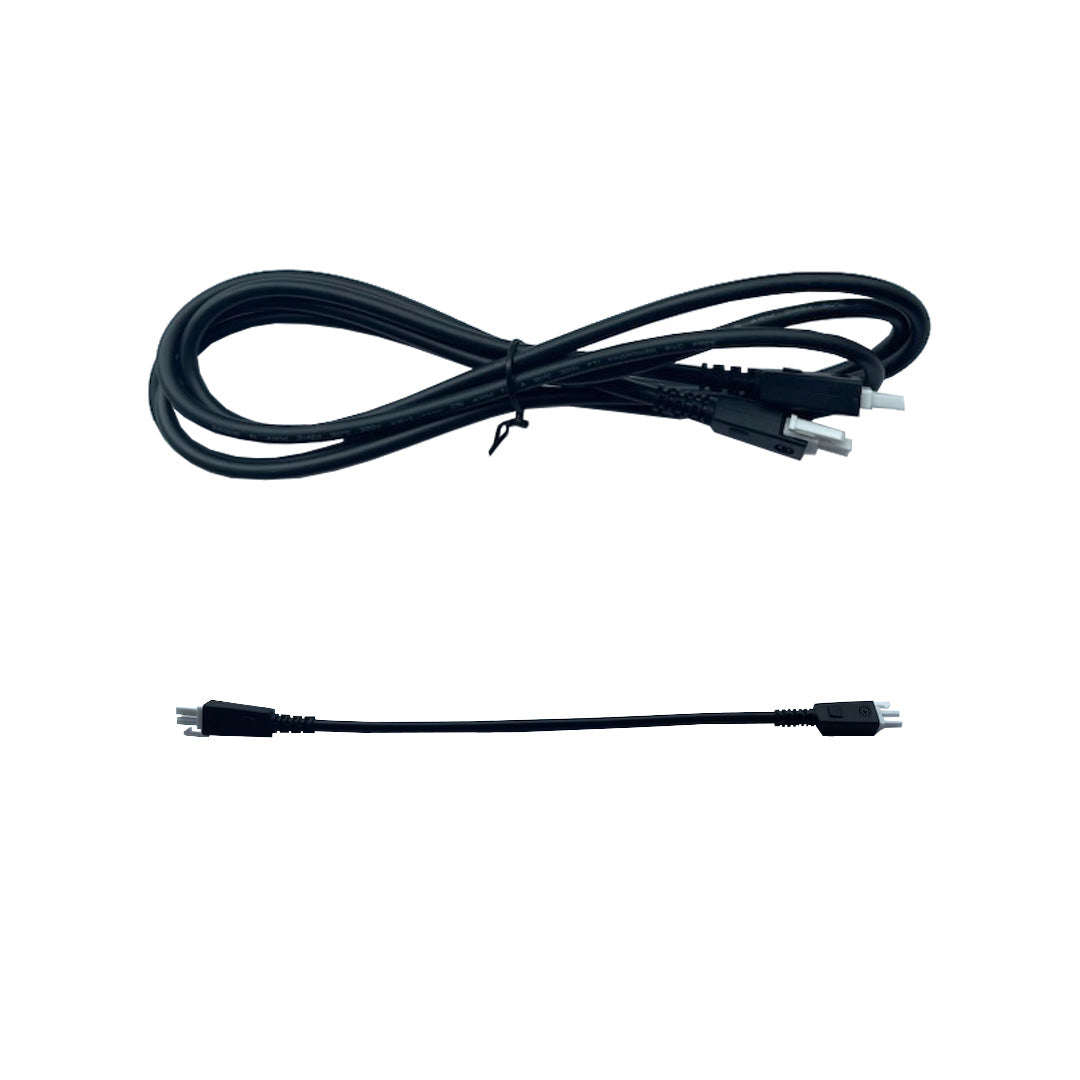

Vendor:LINAK®Connection Cables
Regular price From $18.15 AUDSale price From $18.15 AUD Regular priceUnit price per
LINAK® Cable Range
-

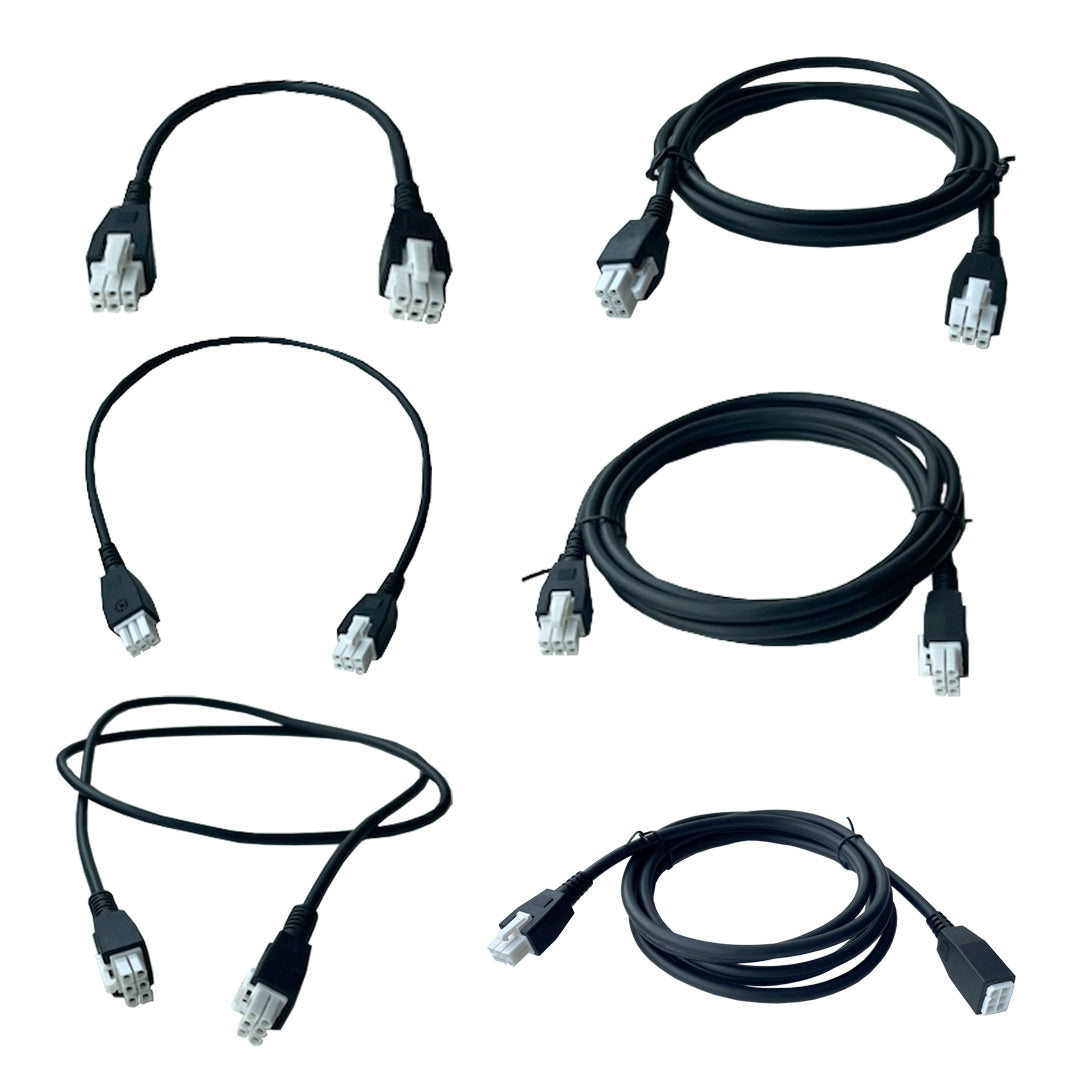

Motor Cables
Used to connect LINAK® actuators to control boxes for power and motion control. Choose length based on layout and system requirements:
- 200 mm
- 500 mm
- 1000 mm
- 2000 mm
- 2500 mm
- extension cable 2000 mm
-

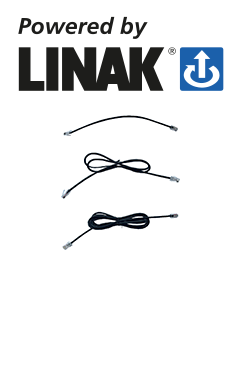

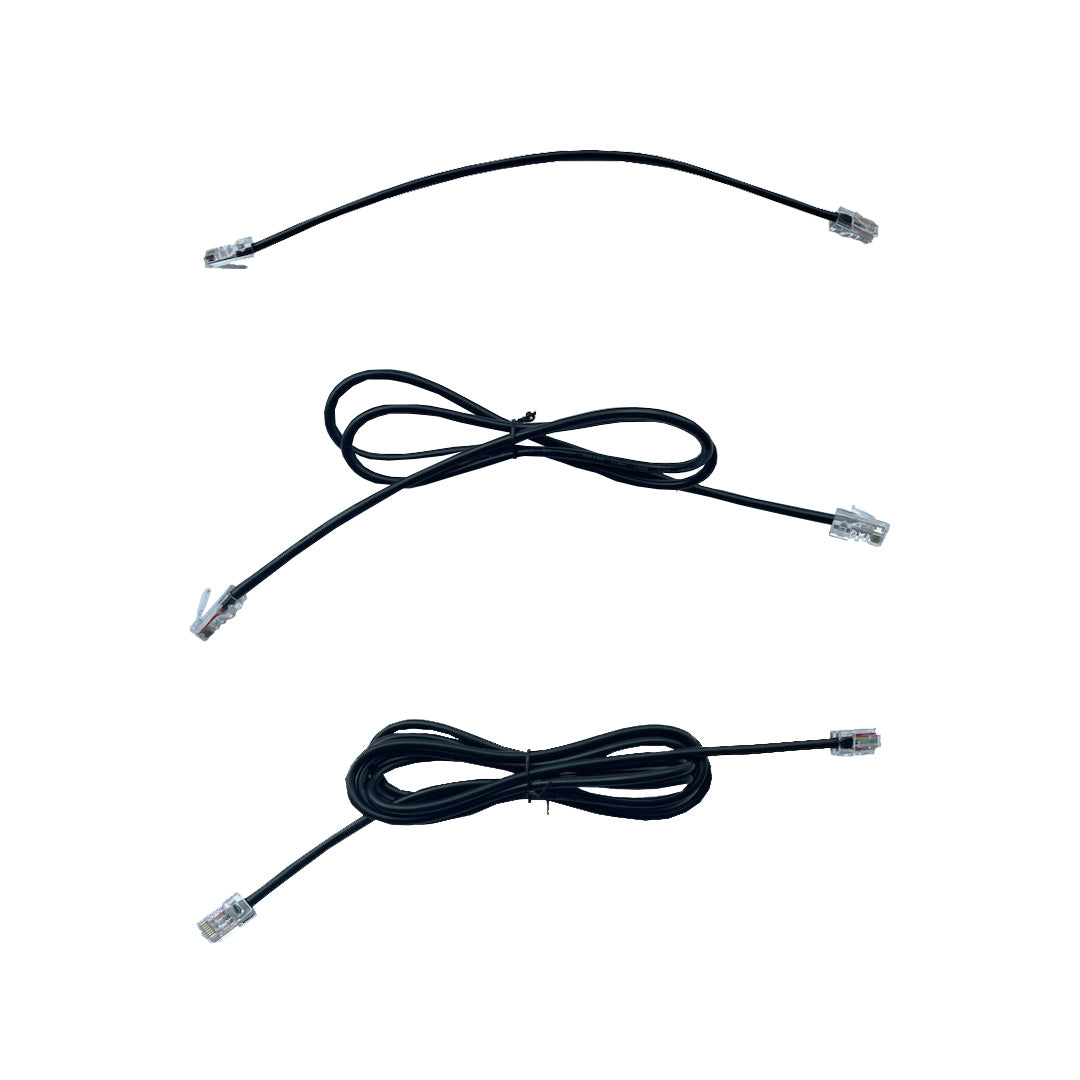

Link Cables (Cat 6)
Link cables connect multiple control boxes for synchronised motion in multi-leg desk systems.
Cat 6 cables ensure signal stability.
- 300 mm
- 1000 mm
- 2000 mm
-

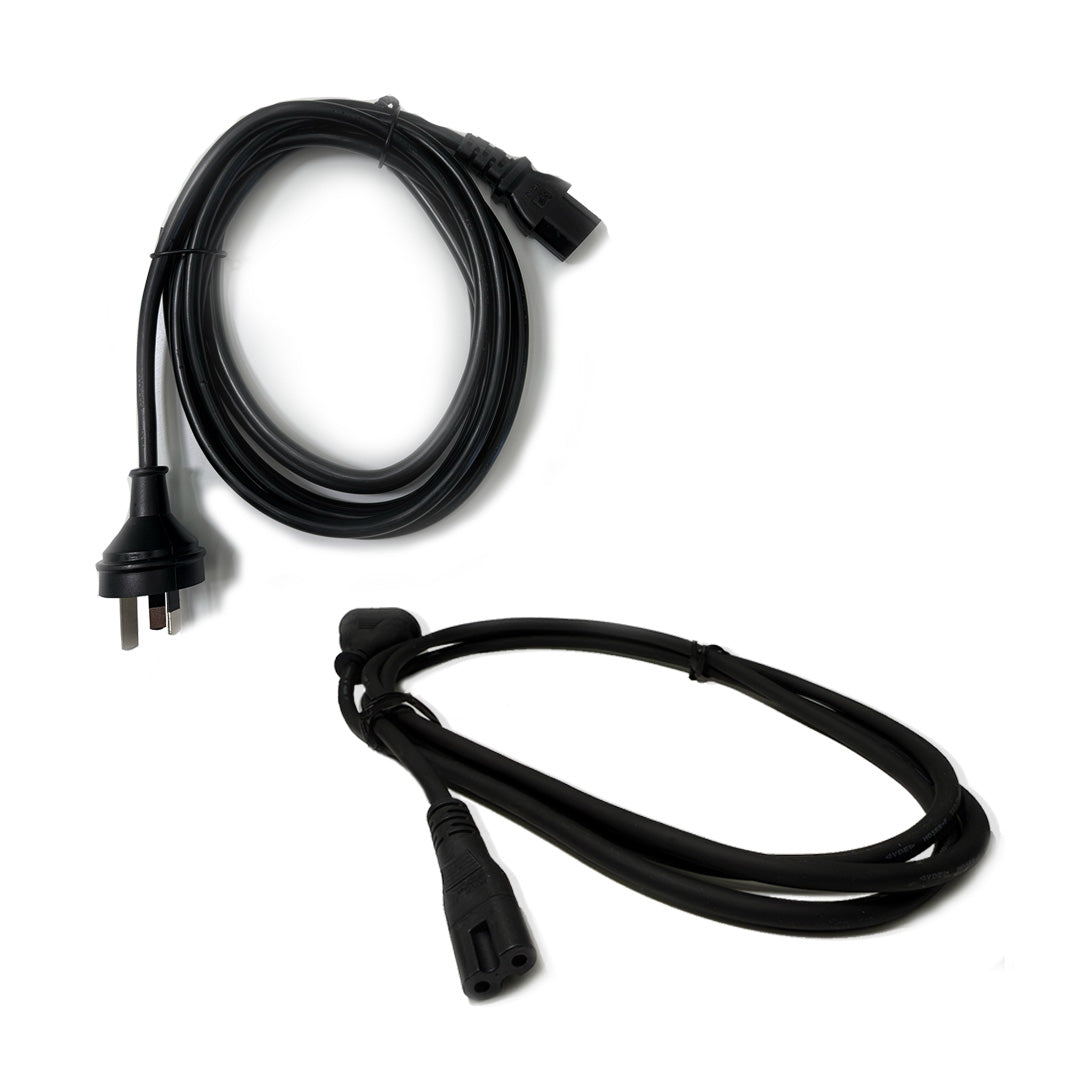

Mains Power Cables
Used to deliver AC power to LINAK® control boxes or SMPS power supplies.
-
Battery Pack Connection Cables
Connect LINAK® lithium-ion battery packs (BA001) to control boxes. Length options suit stationary and mobile systems.
- 200 mm
- 1800 mm
Cable Selection
Best Practices
Match the right cable to your actuator configuration.
Understand key considerations for choosing and installing LINAK® cables in electric lifting systems.
LINAK® three main cable types
LINAK® actuators support three main cable types
- Separate Power & Signal Cables
Ideal for flexible integration across complex machinery and modular desk setups. - Combined Power + Signal Cable
Best suited for actuators with lower current draw; simplifies cable routing. - Y-Cable
Combines both power and signal in a single plug, reducing cable clutter and speeding up installation.
Ensure long-term reliability by following these guidelines:
Define Requirements
Match cable type and length to:
- Actuator quantity
- Power/control configuration
- System architecture
Shielding
Use shielded cables when operating near motors or power sources to avoid EMI (electromagnetic interference).
Avoid Bending
Respect the minimum bend radius during installation to prevent cable damage or signal loss.
Environmental Protection
Ensure cable ends are sealed to maintain the IP rating of your components.
Plug & Play Integration
- Speed up installation without compromising on safety.
- LINAK® cables are designed for tool-free, bolt-secured integration.
- Pair your actuator with a compatible cable, then secure it using two bolts—one at each end.
- No special wiring or programming required—just plug, bolt, and go.
