LINAK®

DL6 Electric Lifting Column

LIN-DL6001BPE650560

$324.50 AUD
$324.50 AUD
Tax included. Shipping calculated at checkout.

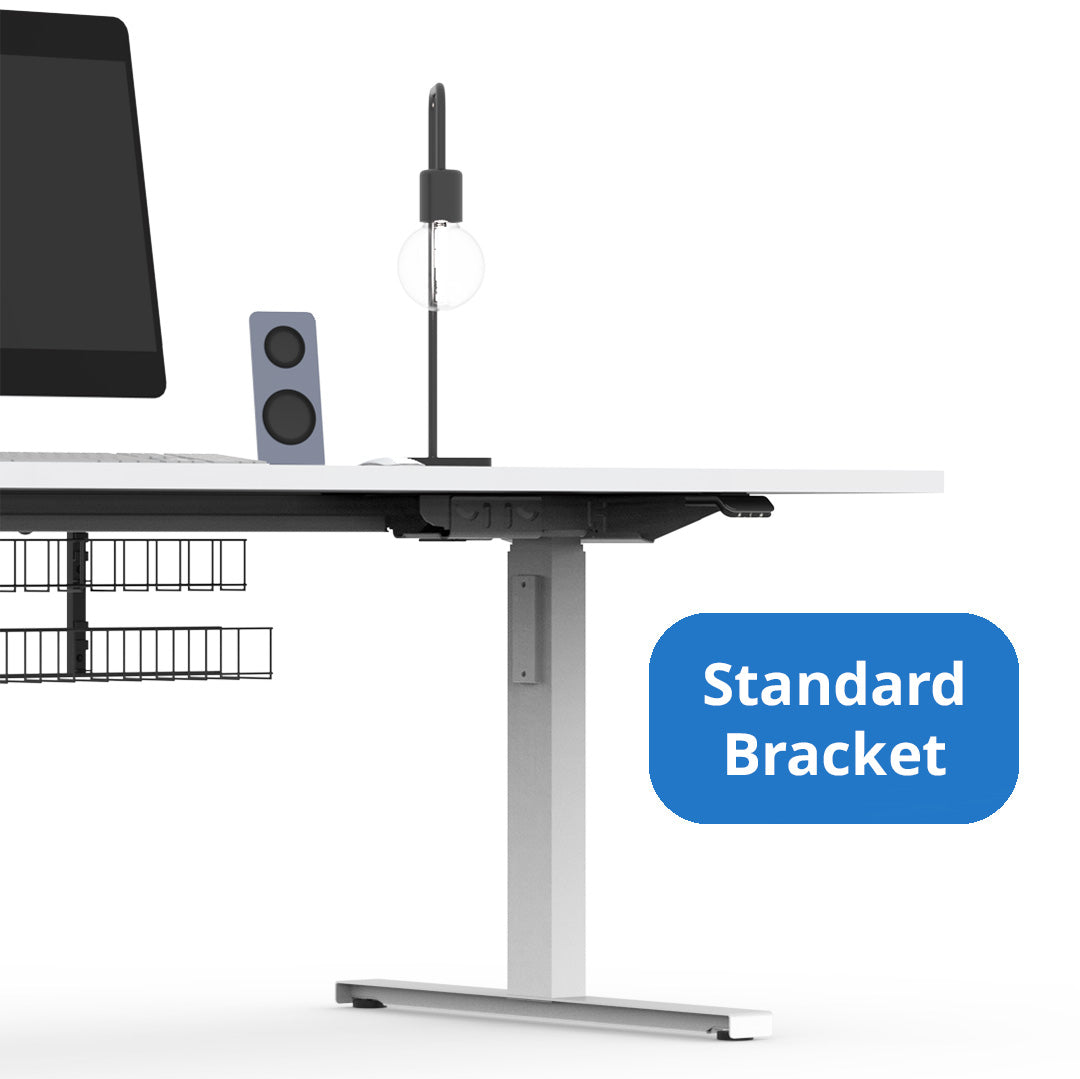

Mounting Bracket
Color: Black
Max Load

Specifications

Max load

800 N - 1200 N (per column)

Stroke Length

650 mm (standard)

Instal Height

560 mm (standard)

Profile Finish

Natural Anodised or Powder-Coated

Column Dimensions

50 x 80 mm

Weight

Approx. 7.5 per column

Motor cable

Purchased separately

Built-in limit switches

Non-adjustable

Compatible with

DESKLINE® control boxes and switches

System Integration

  • Operates as a single unit or in parallel systems (up to 16 columns)
  • Designed for stable, parallel movement in multi-column setups
  • Plug and Play™ - meaning it is compatible with almost any product in the DESKLINE® product family

Applications

  • Adjustable office desks
  • Industrial workstations
  • Dual-desk benching systems
Datasheet Download - DL6
DL6 Electric Lifting Column

$324.50 AUD

  • Single, 2, 3, or 4-column
    parallel operation...

  • & multi-parallel operation up to 16 columns

  • Indoor use in dry environments

  • Duty cycle

    10% (2 minutes continuous use followed by 18 minutes rest)
  • Column: 3-stage, 50 x 80 mm
  • Motor housing: 177 x 97 x 46 mm
  • Installation height: 560 mm
  • Stroke: 650 mm
  • Weight: Approx. 7.5 kg
  • Mounting: 4x M6 and 2x M8 threaded holes
  • Input via DESKLINE® CBD6S (200 W or 300 W)
  • Max speed (unloaded) in standard version: 38 mm/s (300 W), 23 mm/s (200 W))
  • Control compatibility: Handsets, Kick & Click™, Desk Sensor™
  • Compatible with top frames and Click-on Feet
  • Suitable for integrated bench solutions
  • Operation: 10–40 °C, 20–80% RH (non-condensing)
  • Storage/transport: –10 to +50 °C
  • Atmospheric pressure: 800–1060 hPa
  • Altitude: Max. 2000 m
  • Indoor use only
