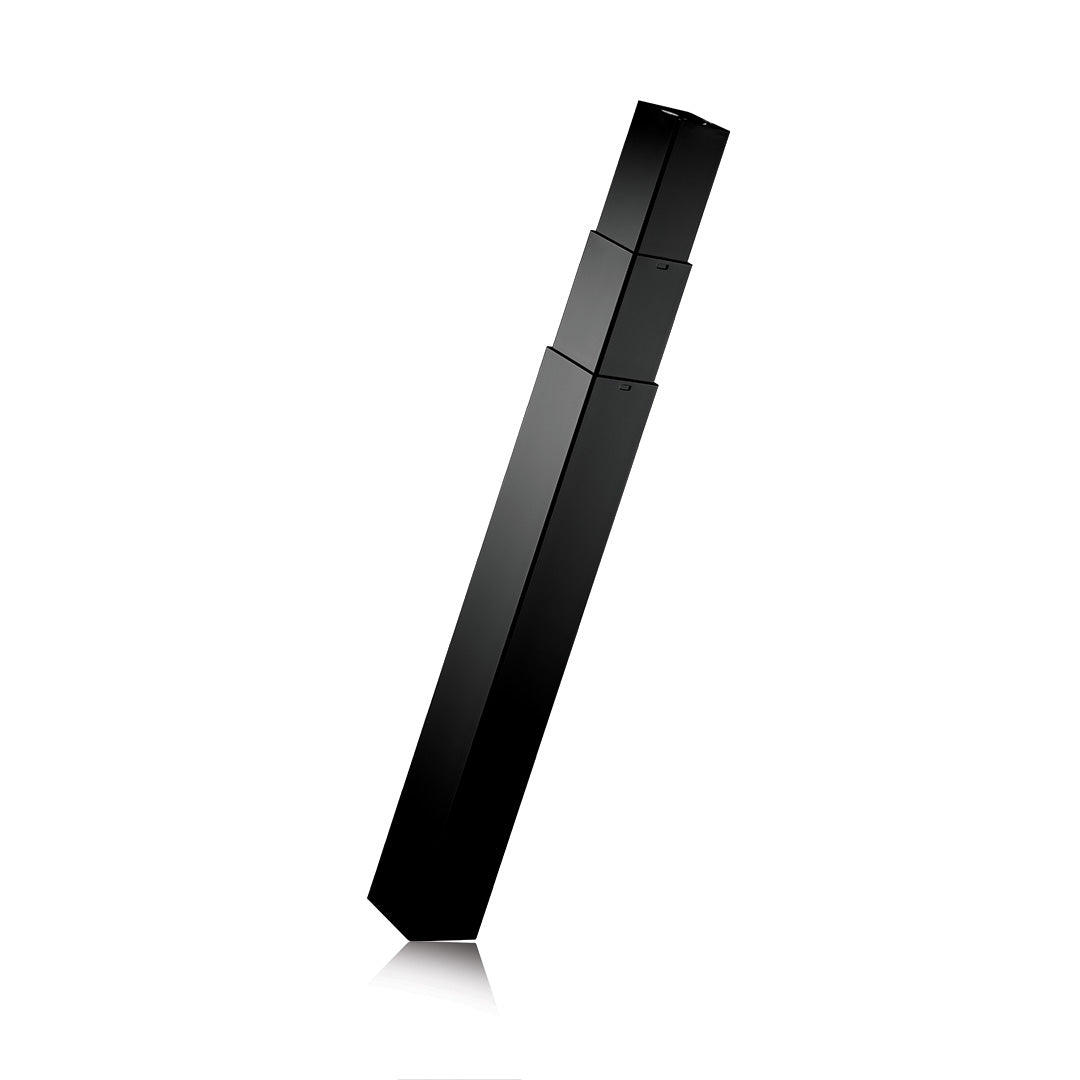

DL17 Electric Lifting Column

LIN-DL17000B0E660518

$338.80 AUD

$338.80 AUD

Tax included. Shipping calculated at checkout.

Shop safely

Fully secure checkout
Trusted by thousands
Rated and reviewed

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

LINAK® DL17 - 3 Stage Inline Electric Lifting Column – 700 N Load Capacity, Square Inline Design

Load Capacity: 700N
Colour: Black

Three-part inline lifting column with square profiles and compact dimensions. The DL17 combines a long 660 mm stroke with a low installation height of 518 mm, enabling ergonomic desk solutions without crossbars.

Integrated PIEZO™ anti-collision technology comes standard, preventing damage during operation. Designed with minimal profile steps and concealed gliding pads, the DL17 supports clean, contemporary desk designs.

Compatible with DESKLINE® control boxes, supports multi-column configurations up to 16 units.

Specifications

Max load	700 N (per column)
Stroke Length	660 mm
Instal Height	518 mm (Standard)
Profile Finish	Black
Column Dimensions	70 × 70 mm outer profile
Weight	Approx. 8.0 kg per column
Anti-Collision	PIEZO™ sensor included
Drive Configuration	Single, 2, 3, 4 or up to 16 columns
Control Box Compatibility	DESKLINE® CBD6S
Noise Level	Low-noise operation
Cable	Separate motor cable

System Integration

Can operate as a single column or in parallel systems of 2, 3, or 4 columns.
Multi-parallel systems of up to 16 columns supported with CBD6S.
Compatible with all DESKLINE® control boxes and controls.
Designed for smooth, synchronous movement with low-noise operation.

Applications

Control room consoles
Industrial work desks
Assembly workstations
Technical desks and lab furniture

Datasheet Download - DL17

DL17 Electric Lifting Column

$338.80 AUD

Features

Options

Usage

Square Inline Column with Compact Profile

Supports ergonomic desk configurations with minimal profile steps.

660 mm Stroke with Low Installation Height

Efficient height adjustment for users of all sizes.

Integrated PIEZO™ Collision Protection

Avoids damage from desk obstructions during movement.

Quiet, Synchronous Drive

Low-noise performance with stable parallel operation.

DL17

3 Stage Inline LINAK® Electric Lifting Column

Learn more
Customisation
- Bench bracket for bench solutions
- Bracket for crossbar
- Available with trim rings
DESKLINE® control boxes

Compatible with DESKLINE® control boxes, supports multi-column configurations up to 16 units.

Ideal for Office desks

Control consoles, industrial workstations
Single or multi-column systems (up to 16 columns)

Mechanical Specifications

Electrical & Control

Mounting & Integration

Environmental & Durability

Square 3-part inline profile (70 × 70 mm outer)
Minimum spacing between profiles
Invisible gliding pads
Max dynamic bending moment: 150 Nm

Max speed: 38 mm/s unloaded
Max load: 700 N per column
PIEZO™ collision protection included
Powered by DESKLINE® CBD6S (200W or 300W)
Synchronous middle-profile drive
Duty cycle: 10% (1 min on, 9 min off)

No crossbar required
Supports trim ring options
Bench and crossbar bracket options available
Compatible with DESKLIFT™ Feet

Operating temperature: 10 to 40 °C
Storage temperature: -10 to +70 °C
PVC-Free™ design
Complies with EN 60335-1 and UL 962 (with CBD6S)

Watch Inline column DL17 Video from LINAK®

• PVC-Free™ for a more environmentally friendly product
• Pleasantly low noise level
• Synchronous drive of the middle profile
• Separate motor cable
