DPT Touch Panel - DPT1C - framed in Black or White

Name: DPT Touch Panel - DPT1C - framed in Black or White
Brand: LINAK®
SKU: LIN-DPT1C00-102206
Price: 123.2 AUD
Availability: InStock

LIN-DPT1C00-102206

$123.20 AUD

Tax included. Shipping calculated at checkout.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Shop safely with us

LINAK® DPT Touch Panel with the frame, 3 memory presets and LED height display.

The capacitive touch panel designed for smooth integration into the tabletop surface of height-adjustable desks.

up to 3 memory positions
the DPT displays real-time height information
Integrated diagnostics enable error code display for troubleshooting

Specification

Display	LED height readout (cm or inches)
Controls	6 capacitive buttons (Up, Down, Store, 3 Memory)
Mounting Options	Ø72 mm with frame. (The countersunk Option-DPT1C00-202006 non-stocked item in Australia)
Colour Options	Black (RAL 9005); White (RAL 9016); Both with chrome print
Cable	1580 mm, RJ45, straight
Standby Power	<0.1W (ZERO™ technology)
Max Altitude (operation)	2000 m

Applications

Office desks
Height-adjustable kitchen counters
Workbenches with integrated controls

Compatibility

To be confirmed

Datasheet Download - DPT

DPT Touch Panel - DPT1C - framed in Black or White

$123.20 AUD

Features

Options

Usage

Simple Tabletop Integration

Flush-mounted capacitive touch interface for clean, ergonomic control.

Clear Height Feedback

LED display shows desk height in centimetres or inches.

User-Friendly Presets

Save and recall up to three preferred height settings with intuitive memory.

DPT Touch Panel

The touch control with memory presets and LED height display.

Learn more
Seamless Control with Integrated Touch Panel

Flush-mounted capacitive interface with LED height display and memory presets for precise, user-friendly adjustment.
Modern Desk Adjustment at Your Fingertips

Touch-sensitive control panel with real-time height readout and three programmable positions for streamlined ergonomic use.

DPT Panel

Commonly used in control rooms, operator stations, workbenches, and ergonomic workstation setups.
Ideal for electric height adjustable desks in office, industrial, or technical environments
Compatible with all DESKLINE® control boxes and DL IC systems

Mechanical

Electrical

Mounting

Environmental

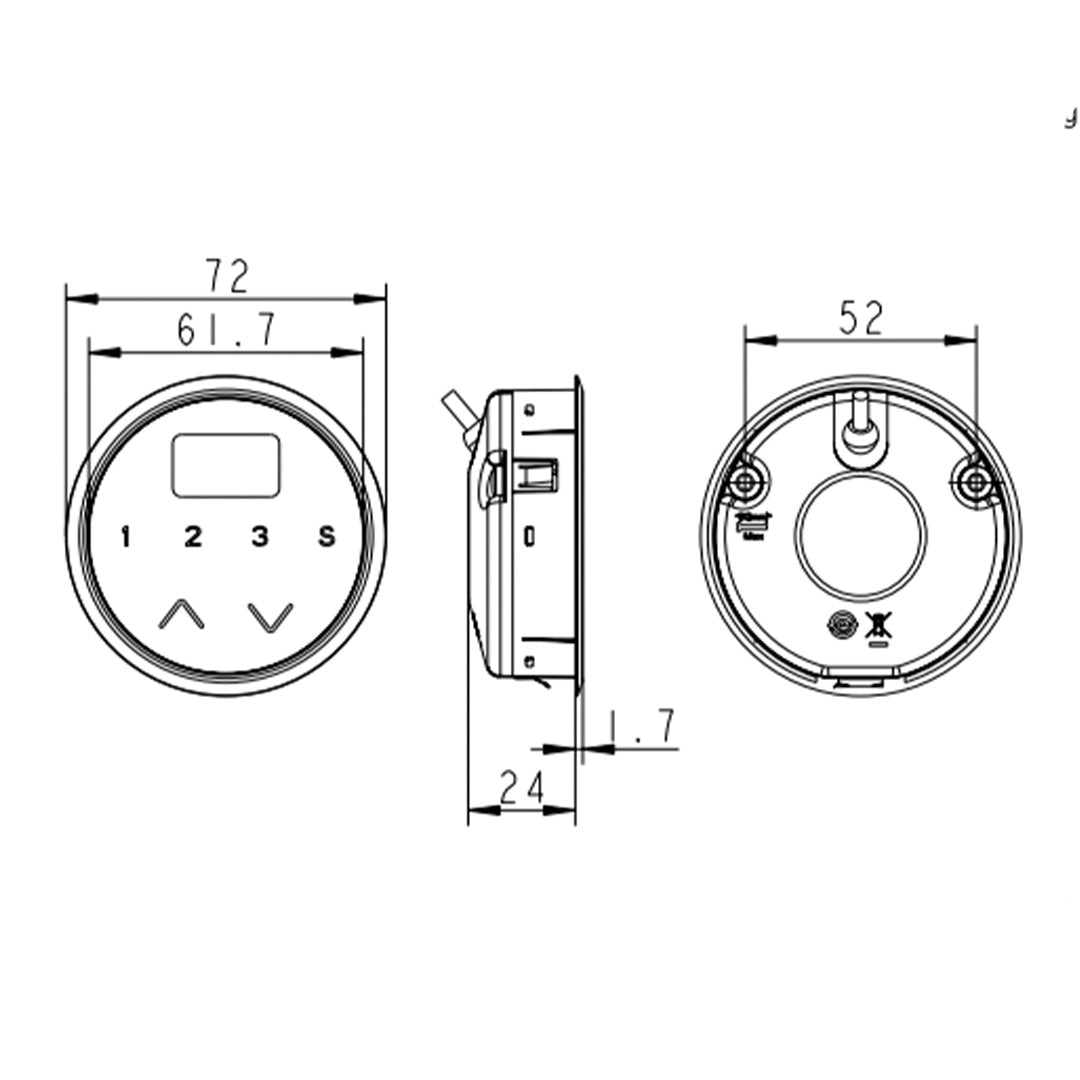

Panel size: Ø71.8 mm or Ø72 mm
Mounting: Expander fixing for flush installation

Input: Via RJ45 cable
Power consumption: Ultra-low in standby (ZERO™)

Desktop integration only
Countersunk or framed variants

Operating Temp: 10°C to 40°C
Storage Temp: -10°C to 50°C
Relative Humidity: 20%–80% (non-condensing)
Atmospheric Pressure: 800–1060 hPa (operation), 700–1060 hPa (storage)

Desk Panel DPT
How to unlock the desk panel

The DPT is a high-end desk panel designed to operate lifting columns in adjustable desk or kitchens.
